OHM Urban E-Bike Frame

$190.00 CAD

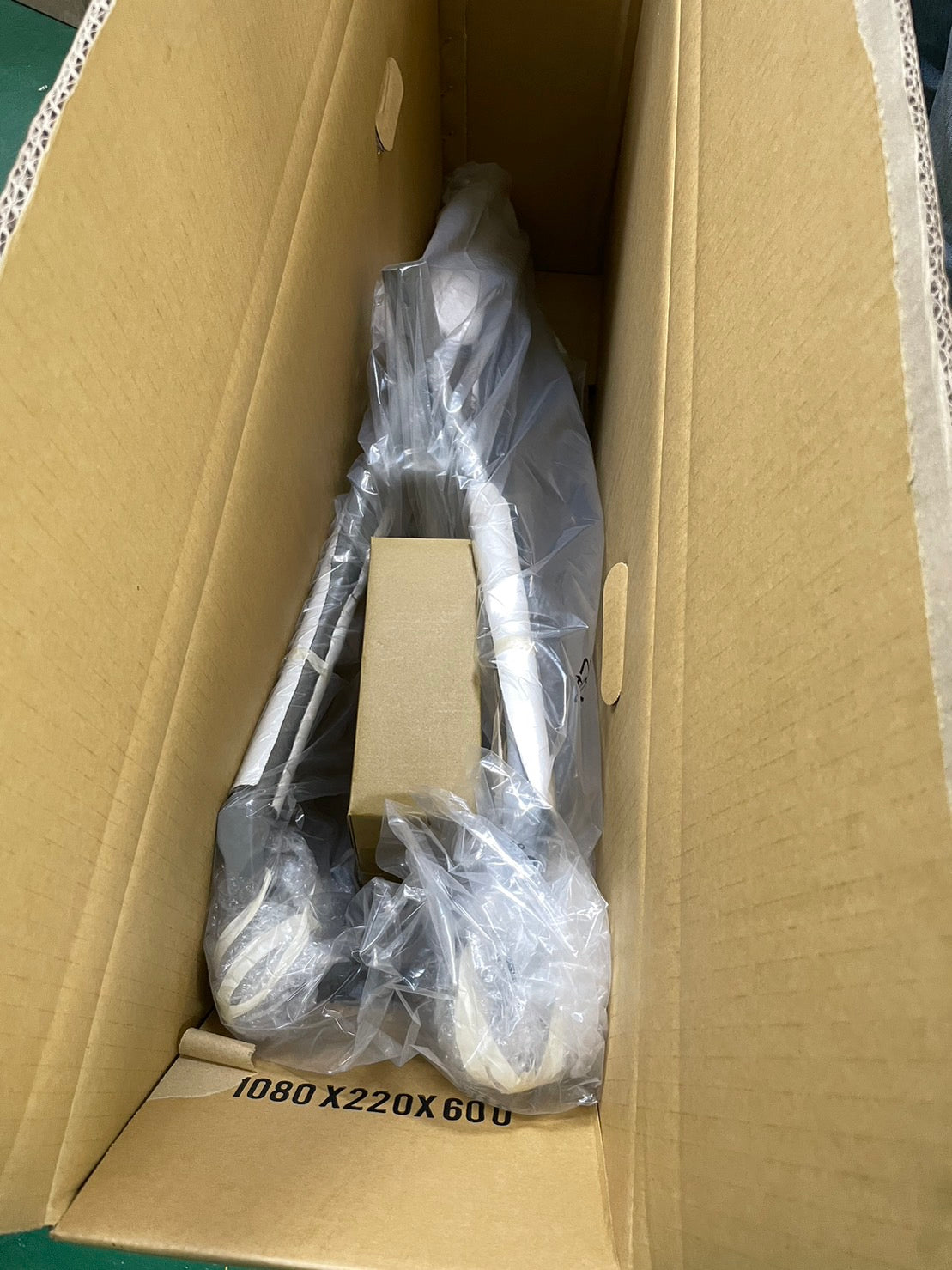

OHM E-Bike Frame New in Packaging
18.5", 20.5", 22.5" sizes available

Clearance for 27.5" x 2.0" tires
Rear Triangle 142mm spacing
Designed to pair with 100mm front fork for optimal performance
Advance series alluminum is OHM's lightest and stiffest design
Geometry is suited for city and light trail riding

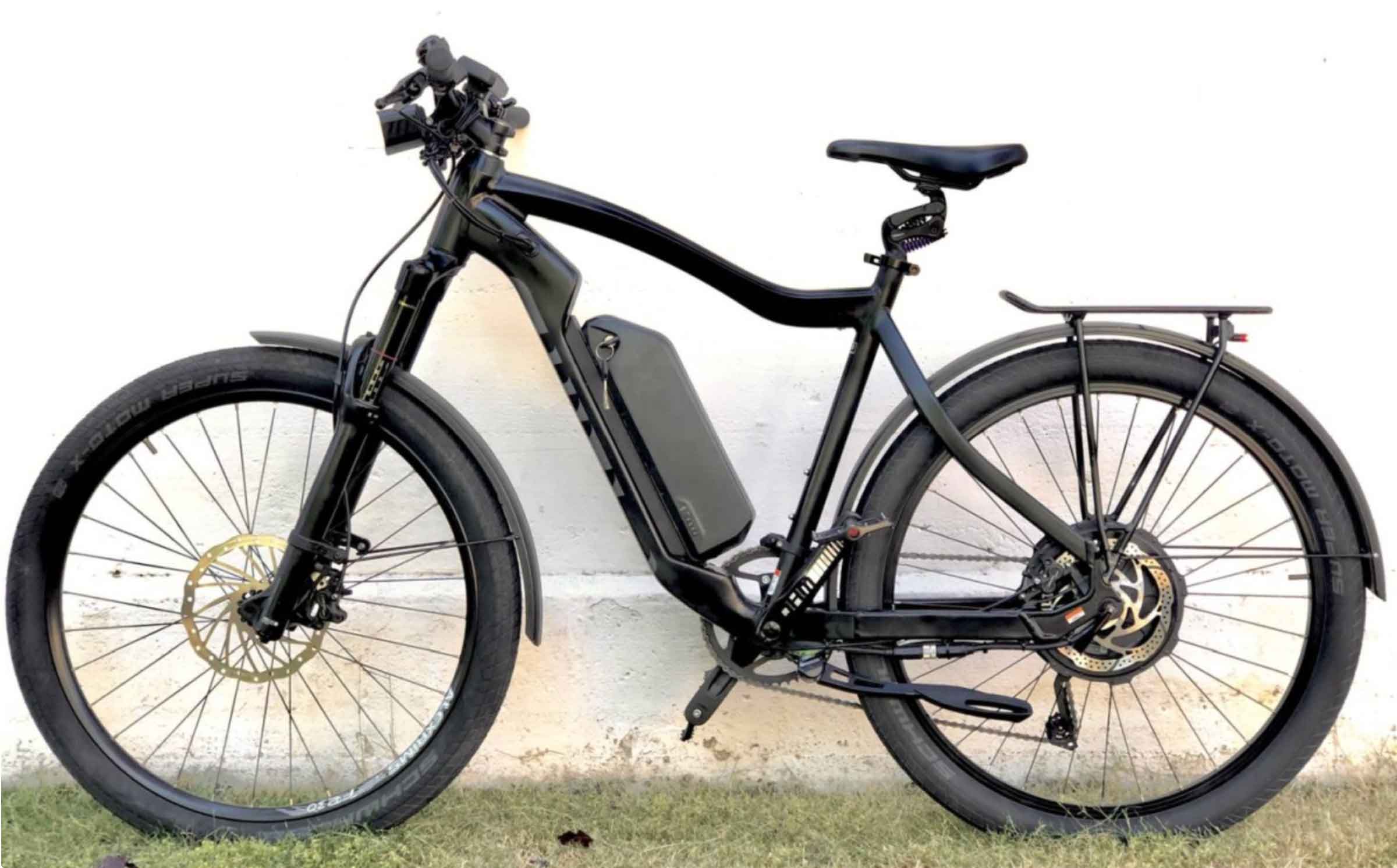

Perfect for Grin All-Axle Motor

Dropout hanger
Cable Guides

Not included:
Headset Ritchey PRO OD44/55*ID28.6*CONE RACE_39.8,W/7.3mm


Size 18.5 20.5 22.5
Top Tube Length (Effective) 580mm 600mm 620mm
Chainstay Length 450mm 450mm 450mm
Bottom Bracket Drop 38mm 38mm 38mm
Bottom Bracket Height 305mm 305mm 305mm
Head Tube Length 140mm 140mm 150mm
Head Tube Angle 70' 70' 70'
Offset 42mm 42mm 42mm
Trail 80mm 80mm 80mm
Seat Tube Angle (Effective) 72.5' 72.5' 72.5'
Wheel Base 1089mm 1109mm 1130mm
Stack 615mm 615mm 624mm
Reach 386mm 406mm 423mm
Standover Height 729mm 760mm 792mm
Handlebar Width 620mm 620mm 620mm
Stem Length 90mm 90mm 90mm
Crank Length 170mm 175mm 175mm
Seatpost Length 300mm 300mm 300mm
