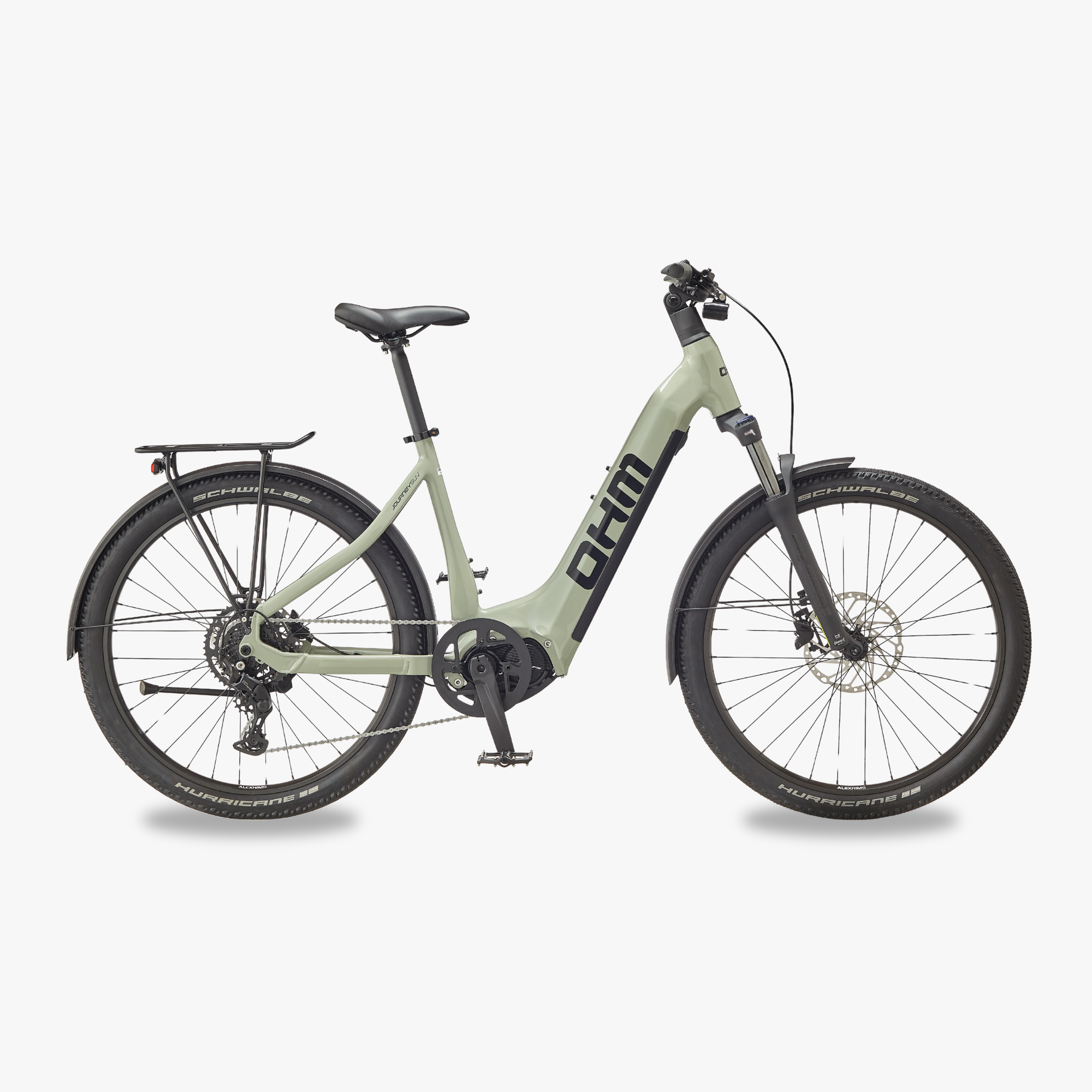

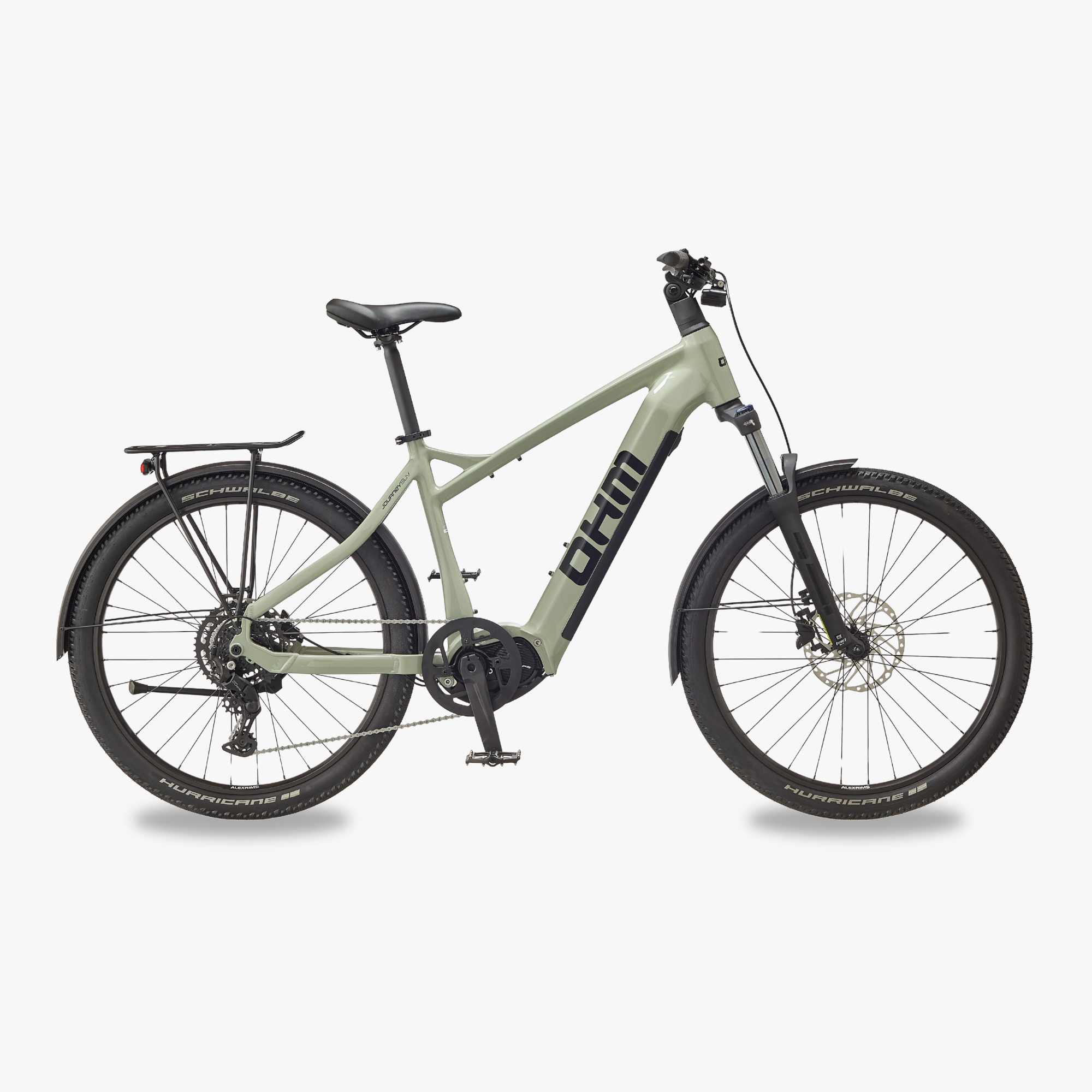

Journey EP5 Adventure E-Bike

• Shimano EP5 Drive: 500W with 60Nm max torque for natural assistance on any terrain

• Premium Frame: Smooth-welded aluminum with clean lines and sturdy construction

• ProRide™ Forward Geometry: Enhanced stability at speed with precise control on varied terrain

• Long Range Battery: 531Wh or 708Wh premium LG cells for customizable adventures

• Shimano CUES: 9-speed precision shifting for optimal gearing in all conditions

• Shimano dual-piston hydraulic brakes with 203mm rotors for confident stopping

• Lezyne Lighting LEDs powered by main battery for reliable visibility


SIZES S, M, L
COLOURS Glacial
FRAME 6061 Aluminium, Comfort Geometry, Boost 148, Fully Integrated Battery, Integrated Carrier, Internal Cable Routing, Tapered Headtube
FORK SR Suntour XCM34-Boost LO DS 15AH2-110 27.5", 100mm

HEADSET ACROS AZF-789 ICR (Internal Cable Routing)
HANDLEBAR MJ 31.8mm, Rise: 25mm, Backsweep: 7°
GRIPS VELO Comfort Ergo, Lock on
STEM SATORI Shorty, 45mm, Adjustable 0- +90
SEATPOST MJ 30.9mm
SADDLE VELO Comfort Ergo
PEDALS WELLGO, Aluminium body, Cr-Mo axle, sealed cartridge

<!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}-->SHIFTERSSHIMANO SL-U4010-9R, CUES, 9-SPEED Rapidfire Plus, with OGDDERAILLEURSHIMANO RD-U4000, CUES, GS 9-SPEED, Shadow DesignBRAKESSHIMANO BL-MT200, Dual piston, Hydraulic DiscROTORSSHIMANO SM-RT64, 203mm (F), SHIMANO SM-RT64, 180mm with Magnet (R)CASSETTESHIMANO CS-LG300-9, CUES, 9-Speed, 11-46TCHAINKMC eGLIDE EPT, w/QuicklinkCRANKSETFSA CK-752 Forged AL6061 spider, 44T w/chainguard

RIMS ALEXRIMS MD35, 32H
HUBS SHIMANO HB-TC500-15-B (F), SHIMANO FH-TC500-HM-B (R)
TIRES SCHWALBE Hurricane, Performance, 57-584, 27.5 x 2.25, HS499 ADDIX 67EPI

FRONT LIGHT LEZYNE Mini STVZO E300+, 100 LUX 300 Lumen
REAR LIGHT LEZYNE Super Bright STVZO, 12 Lumen
FENDERS HEBIE Alumee, Double Wall, Aluminum
CARRIER RACKTIME Snap-it 1.0 Bag and Basket Compatible, 25kg max
KICKSTAND PLETSCHER COMP 40

DRIVE UNIT SHIMANO DU-EP500, 500W, 60Nm
REMOTE SHIMANO SC-EN500
BATTERY 531Wh, Aluminium casing, w/Shimano Service (Optional 708Wh)
CHARGER Smart Plus Charger, 42V4A

• Class 1/3 E-Bike, (Software Restricted)
• UL 2849
• ISO 4210
  See Shimano UL Certificates
